Technical specificationsX

Volume flow ⁹⁾	5 - 60 m³/h
Max. degree of heat supply ^b)	90 %
Heat supply level according to EN 13141-8 ^c)	0 - 40: 83 % 0 - 60: 80 %
Max. standard sound level difference Dn,e,w ³⁾	67 dB
Sound power level LW ³⁾	from 18 dB(A)
Power consumption ^{3) 9)}	0,4 - 3,3 W
Minimum installation length	200 mm
Dimensions (Ø x L)	Ø 154 x 160 mm
Compatibility	All 160 systems incl. LUNOtherm & outer hoods as outer closure
Energy efficiency class	A

(1-9, a-g) For further information on the technical data specifications click here.

The e²60short: With heat recovery

The e² series

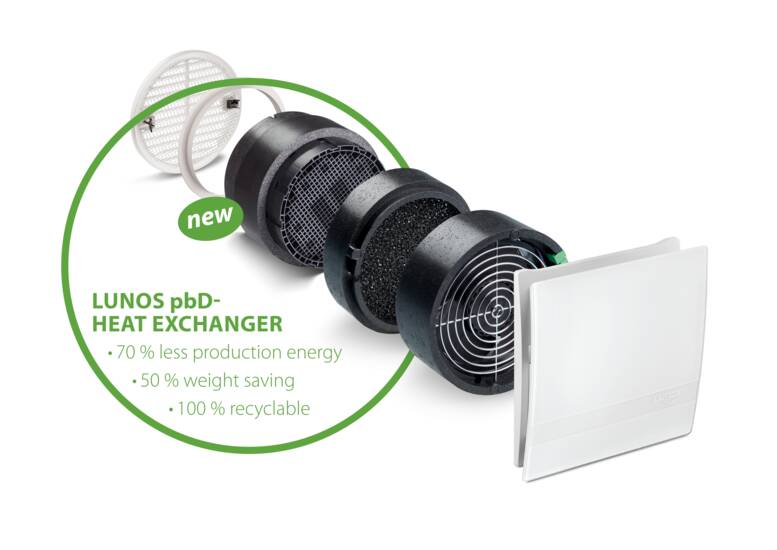

With the new heat exchanger the e²60short from the e² series is one of the smallest, lightest and most sustainable decentralised fans with heat recovery in home ventilation in the single-channel device class worldwide.

Special features

When it comes to sound insulation, the e²60short keeps up with the e²60 and also achieves a standard sound level difference of up to 67 dB, which means it meets the high sound insulation requirements of LUNOS.

Installation

Thanks to a shorter storage element, the e²60short can be installed in walls with a minimum installation length of 200 mm and has a maximum heat supply efficiency of 90 %.

Like the e²60, it can also be used in any e² environment, as the same grilles, outer hoods, inner screens and controls can be used. Quick retrofitting is possible at any time.

Extra

The products in our e² series all have the option of summer ventilation.

Approval

The e²60short received approval from DIBt on 18 April 2023.

Art.-no. 40150
