Facade element series

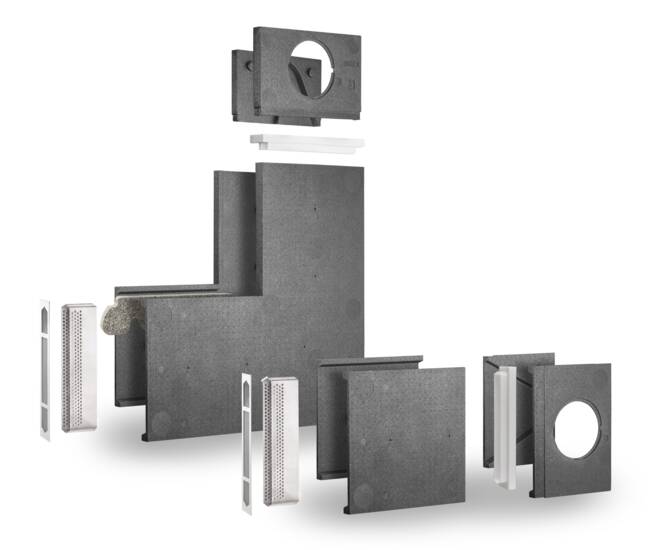

The LUNOtherm is a facade element with which the inflow opening disappears from the wall surface, thus enabling unrestricted facade design. We have further developed the proven L-shape of the LUNOtherm-S and -S+ into the LUNOtherm-G and -G+ with a straight duct. This gives you even more freedom in positioning and more installation options are available.
Special features
LUNOtherm has been optimised for very high sound insulation and is also easier to work with. The deflection of the air and thus also of the sound by a further 90° ensures the high sound insulation properties of the LUNOtherm. A significantly lower weight and an adaptable standard size also ensure better handling in logistics and on the construction site. The LUNOtherm is made of EPP material (expanded polypropylene). The advantages of this material are structural strength with very low weight, excellent sound absorption and outstanding thermal insulation. Furthermore, it is 100 % recyclable.
Installation
The facade element is installed as a final element in the insulation layer of the building. The air opening is then located in the window lintel, in the window reveal or under the window. It can be installed above, to the side, next to or below the window, so that it can also be combined with a roller shutter box without any problems.
Extra
Together with the new silencer 9/SD-LS, the LUNOtherm-S and -G now becomes the LUNOtherm-S+ and -G+, which easily achieves values of up to 75 dB. Of course, the silencer can also be retrofitted in the LUNOtherm-S and -G.
Approval
The LUNOtherm officially received its approval from the DIBt, German Institute for Building Technology, on 08 July 2024. This makes it only the second facade element ever on the market to receive this approval from DIBt. LUNOtherm A and B from LUNOS received the first approval in 2005.
Art.-no. 41154 (LUNOtherm-S)
Art.-no. 41100 (LUNOtherm-G)
Art.-no. 41168 (Silencer)
Hinweis
Lüftungsgeräte und deren Zubehör, welche einen Verwendbarkeitsnachweis in Form einer abZ (allgemeine bauaufsichtliche Zulassung) des DIBt (Deutsches Institut für Bautechnik) besitzen, erfüllen die Anforderungen der abZ nur, wenn sie nach den Vorgaben aus ebendieser abZ verbaut werden und im beschriebenen Einsatzbereich betrieben werden. Zur Einhaltung der Anforderungen der abZ gilt es, insbesondere Aufmerksamkeit auf die jeweilige, individuelle Einbausituationen und optional verplantes/verbautes Zubehör zu legen. Die Prüfung der Einhaltung der Anforderungen aus abZ sowie aus z.B. den Landesbauordnungen muss bauseits erfolgen.
