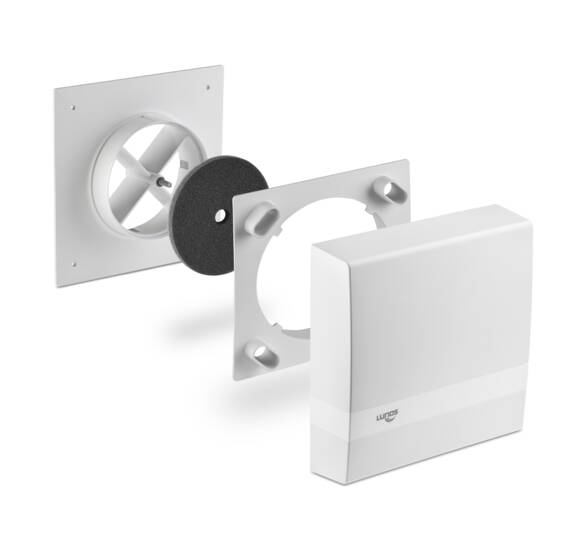

9/IBS: Sound insulation inner screen

The solution for increased sound insulation requirements

The sound insulation inner screen from LUNOS is the solution when you need fresh air and silence:

  • Useable for 160 series components, i.e. compatible with RA 15-60 and AB 30/60, e² with heat recovery and ALD, ALD-S and ALD-SV
  • Significant increase of the standard sound level difference (depending on the ventilation component installed behind the sound insulation screen)
  • Closable by simple latching function and spring element
  • Dimensions: (W x H x D) 250 mm x 250 mm x 70 mm (closed), 85 mm (open)

Art.-Nr. 39947







An overview of all interior panels from LUNOS can be found here
