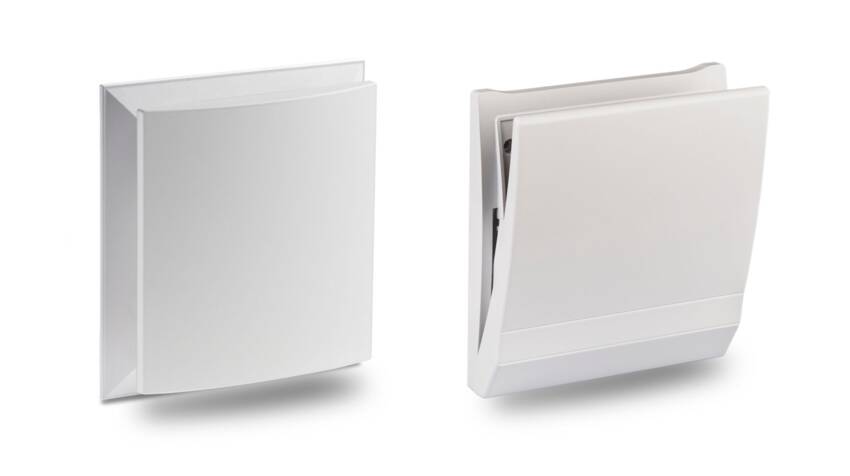

9/IBE + 9/IBK: Inner screens

Available in standard and comfort versions

Standard inner screen and comfort inner screen in plastic design for the 160 series fans.

Installation

Installation is carried out by inserting the filter frame and the cover into the round duct 9/R 160. The inner screen must engage in the open position.

Dimensions 9/IBE

(H x W x D): 180 mm x 180 mm x 35 mm

Dimensions 9/IBK

(H x W x D): 191 mm x 180 mm x 60 mm

Art.-no. 9/IBE - 39 851

Art.-no. 9/IBK - 40 087









An overview of all interior panels from LUNOS can be found here
