9/FEGO-3R: Filter for fans in the ego series

Filter class G3

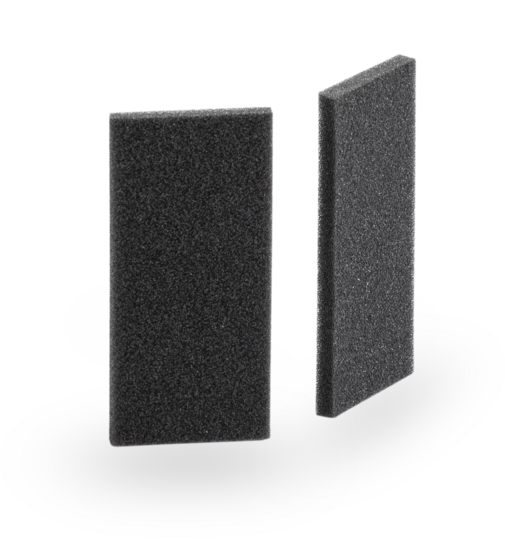

4 washable filters with filter class G3 for our exhaust air fans with heat recovery from the ego series.
Dimensions (W x H): 70 x 140 mm

Filter change

If a filter needs to be changed, this is signalled by the LED on the switch lighting up continuously in red. To do this, please remove the cover of the inner screen, take out both filters and clean them in the dishwasher or with water and detergent. You can then reinsert the dry filters and snap the cover of the inner panel back into place. Our regenerable filters can easily be cleaned 4-5 times before they should then be replaced.

To reset the filter change indicator, press the left switch rocker within 2 seconds by switching back and forth quickly. If you want to clean the filter before the red LED lights up, you are of course welcome to do so. To restart the cleaning interval, switch the left rocker switch back and forth quickly three times within 3 seconds. The filters are available in packs of four directly from the webshop.

Art.-no. 39998
