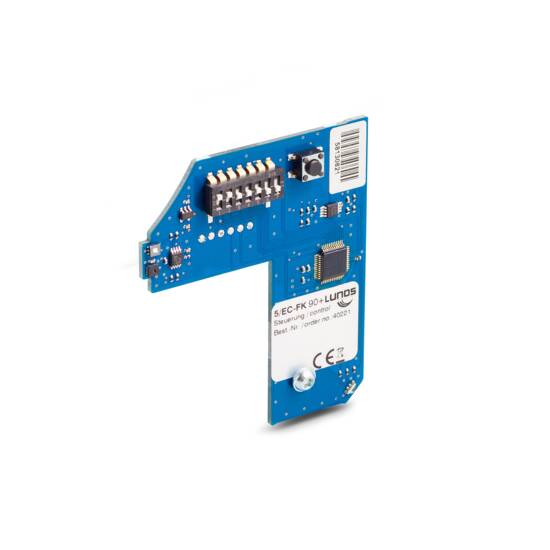

5/EC-FK 90+: Comfort board 90+ for Silvento ec

The Comfortplus board 5/EC-Comfort 90+ is one of the seven control boards with which the Silvento ec can be controlled.

This selection of different volume flows for basic ventilation and demand ventilation is possible:
0 / 15 / 20 / 30 / 40 / 45 / 50 / 60 / 90

The specified volume flow rates refer to the installed condition with accessories (e.g. ducting, weather protection, roof covers).

The actual volume flow rates can be set manually or by software to the setting values of the board. In this way, deviations of the actual volume flow rates from the target volume flow rates can be reliably compensated by individual conditions.

The comfort plus board has the following functions:

  • Slot for an additional module:
    • Radar-supported motion detector 5/BM or
    • FM-EO radio module or
    • Diagnostic cable
  • Filter change indicator
  • Stepless comfort humidity-temperature control
  • VOC sensor
  • Odour detection
  • Pollutant detection (e.g. formaldehyde/solvents)
  • CO2 value determination

A supplement to the approval Z-51.1-215 to include the characteristic curve with 90 m³/h has been applied for at DIBt.
