Technical specificationsX

Volume flow ⁹⁾	15 - 38 m³/h
Max. degree of heat provision ^b)	85 %
Heat supply level according to EN 13141-8 ^c)	75 %
Max. standard sound level difference Dn,e,w ³⁾	54 dB
Sound power level LW ³⁾	from 28 dB(A)
Power consumption ^{3) 9)}	0.6 - 3.9 W
Minimum installation length	200 mm
Dimensions (∅ x L)	Ø 154 x 168mm
Compatibility	All 160 systems incl. LUNOtherm & outer hoods as outer closure
Energy efficiency class	A

(1-9, a-g) For further information on the technical data specifications click here.

The e²short: With heat recovery

The e² series

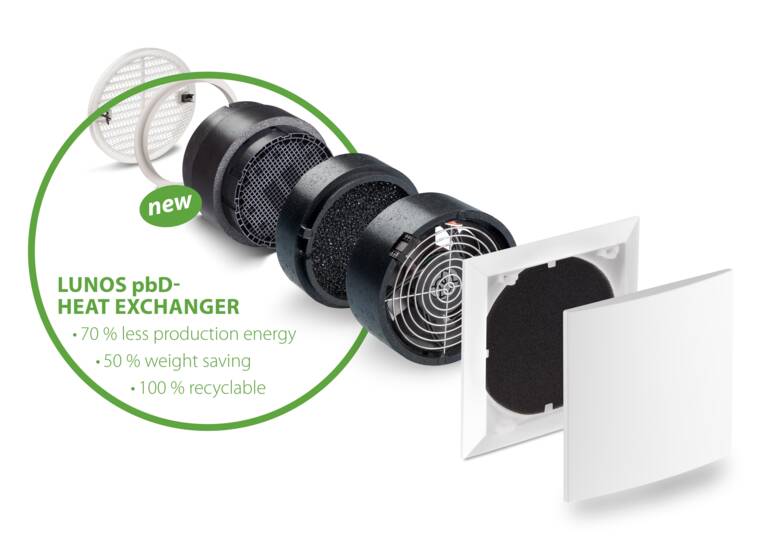

With the new heat exchanger the e²short from the e² series is one of the smallest, lightest and most sustainable decentralised fans with heat recovery in home ventilation in the single-channel device class worldwide.

Special features

The e²short is the short version of the e². Only a minimum wall thickness of 200 mm is required for installation. Please refer to the table below for the exact technical specifications.

Installation

The e²short can be used in the same way as the e² in new buildings and also in renovations. The difference here is the lower wall thickness required: installation is possible from a wall thickness of 200 mm.

Extra

The products of our e² series all have the option of summer ventilation.

Approval

The e² has received building authority approval from the DIBt.

Art.-no. 40003

Information on the technical data

Show technical data

1) Silvento V are fan inserts that still require a flush-mounted or surface-mounted housing.

2) Silvento KL are complete single-pipe fans that are clamped into pre-wall constructions. Silvento KL single-pipe fans fit into the flush-mounted housings of the LUNOS Skalar series.

3) The specified values are achieved at 20°C, 1013hPa and 1.2kg/m3 ambient air density and (unless otherwise specified) are achievable between free-blowing condition and 60 Pa disturbance pressure in accordance with DIN18017-3.

4) When designing the volume flows, please observe the pressure-volume flow characteristics provided by LUNOS and the specifications of the abZ (DIBt approval)

5) Sound power level: The sound power level indicates how "loud" a device is. The value is independent of the distance.

6) Volume flow rate of the ALD-SV with a straight arrangement of the sound attenuation elements.

7) Max. achievable WBG according to EN13141-8 with reference volume flow rate.

8) At 70 % of the maximum volume flow rate, in accordance with ErP Directive, EU Regulation 1254/2014.

9) According to LÜA (test specification) of the DIBt and EN13141-8 max. achievable exhaust air volume flow free-blowing at 20°C and 1013hPa ambient conditions and 1.2kg/m3 ambient air density.

a) According to LÜA (test specification) of the DIBt, see also proof of usability (abZ), when using the wall-mounted housing 9/MRD as insulation, without 9/MRD 2% deduction.

b) According to LÜA (test specification) of the DIBt, max. achievable value.

c) According to EN 13141-8 with reference volume flow, see also certificate of usability (abZ) of the DIBt.

d) According to LÜA (test specification) of the DIBt and EN13141-7 max. achievable exhaust air volume flow free-blowing at 20°C and 1013hPa ambient conditions and 1.2kg/m3 ambient air density.

e) According to EN 13141-7 at reference volume flow rate, see also proof of usability (abZ) of the DIBt.

f) Determined by the Passive House Institute (PHI), see PHI certificate.

g) Sound pressure level at 1m distance, single-point measurement. All figures are mathematically rounded.

All figures are mathematically rounded.

For the informal ventilation concept!
