Volume flow ³⁾	35/70 m³/h
Sound power level LW ^{3) 5)}	from 36 dB(A)
Power consumption ³⁾	1.5/4.9 W
Supply voltage	100 - 240 V 50/60 Hz
Core hole	Ø 162 mm
Minimum installation length	170 mm
Dimensions (Ø x L)	Ø 154 x 130 mm
Protection class	IP44

(1-9, a-g) For further information on the technical data specifications click here.

The AB 30/60: Axial exhaust fan

Exhaust air series

The optimal extension of the e² series in classic extract air rooms such as bathrooms, WCs and kitchens. The inner screen with filter and the outer grille are from the same product family and have the same dimensions. Due to the same design, the e² and AB 30/60 fans are predestined for hybrid ventilation.

Special features

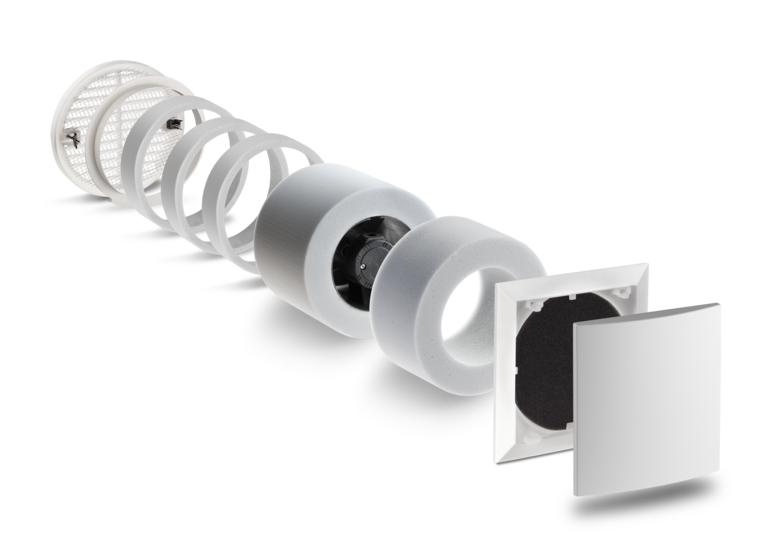

Axial fans are widely known for their loud noises. However, computer-optimised fan blades in combination with a newly developed flow channel and a lot of sound-absorbing material give the AB 30/60 unimaginably low noise levels as well as optimum sound insulation from the outside.

Installation

The ec motor with built-in electronics allows direct connection to the power supply without additional components. The volumetric flow can be selected between the two ventilation levels 30 and 60 m³/h and switched with a standard 2-rocker switch. Without much effort, the 230 V connection cables can be connected directly to the fan. The necessary terminals and a splash-proof protective cover are already provided.

Extra

With only 0.05-0.08 W/m³/h converted power consumption, the AB 30/60 is unsurpassed in energy efficiency.

Art.-no. 39995

Modernste Motorentechnologie

Der ec-Motor mit eingebauter Elektronik ermöglicht den direkten Anschluss an das Stromnetz ohne zusätzliche Komponenten. Der Volumenstrom kann zwischen den beiden Lüftungsstufen 30 und 60 m³/h gewählt und mit einem handelsüblichen 2-Wippen-Schalter geschaltet werden. Ohne großen Aufwand können die 230V Anschlussleitungen direkt an den Lüfter angeschlossen werden. Notwendige Klemmen sowie eine spritzwasserdichte Schutzhaube sind bereits vorhanden.

Niedrigste Geräusche: Axiallüfter können auch anders

Axiallüfter sind weithin für ihre lauten Geräusche bekannt. Rechneroptimierte Ventilatorblätter in Kombination mit einem neu entwickelten Strömungskanal sowie jeder Menge Schalldämmmaterial verleihen dem AB 30/60 jedoch ungeahnt niedrige Geräusche sowie optimalen Schallschutz von außen.

Beste Leistung für die Umwelt

Mit nur 0,05-0,08 W/m³/h umgerechneter Leistungsaufnahme ist der AB 30/60 unübertroffen energieeffizient und leistet so einen aktiven Beitrag zum Umweltschutz und schont auch noch den Geldbeutel.

Art.-Nr. 39995

Hier finden Sie alle Ausschreibungstexte.

Information on the technical data

Show technical data

1) Silvento V are fan inserts that still require a flush-mounted or surface-mounted housing.

2) Silvento KL are complete single-pipe fans that are clamped into pre-wall constructions. Silvento KL single-pipe fans fit into the flush-mounted housings of the LUNOS Skalar series.

3) The specified values are achieved at 20°C, 1013hPa and 1.2kg/m3 ambient air density and (unless otherwise specified) are achievable between free-blowing condition and 60 Pa disturbance pressure in accordance with DIN18017-3.

4) When designing the volume flows, please observe the pressure-volume flow characteristics provided by LUNOS and the specifications of the abZ (DIBt approval)

5) Sound power level: The sound power level indicates how "loud" a device is. The value is independent of the distance.

6) Volume flow rate of the ALD-SV with a straight arrangement of the sound attenuation elements.

7) Max. achievable WBG according to EN13141-8 with reference volume flow rate.

8) At 70 % of the maximum volume flow rate, in accordance with ErP Directive, EU Regulation 1254/2014.

9) According to LÜA (test specification) of the DIBt and EN13141-8 max. achievable exhaust air volume flow free-blowing at 20°C and 1013hPa ambient conditions and 1.2kg/m3 ambient air density.

a) According to LÜA (test specification) of the DIBt, see also proof of usability (abZ), when using the wall-mounted housing 9/MRD as insulation, without 9/MRD 2% deduction.

b) According to LÜA (test specification) of the DIBt, max. achievable value.

c) According to EN 13141-8 with reference volume flow, see also certificate of usability (abZ) of the DIBt.

d) According to LÜA (test specification) of the DIBt and EN13141-7 max. achievable exhaust air volume flow free-blowing at 20°C and 1013hPa ambient conditions and 1.2kg/m3 ambient air density.

e) According to EN 13141-7 at reference volume flow rate, see also proof of usability (abZ) of the DIBt.

f) Determined by the Passive House Institute (PHI), see PHI certificate.

g) Sound pressure level at 1m distance, single-point measurement. All figures are mathematically rounded.

All figures are mathematically rounded.
